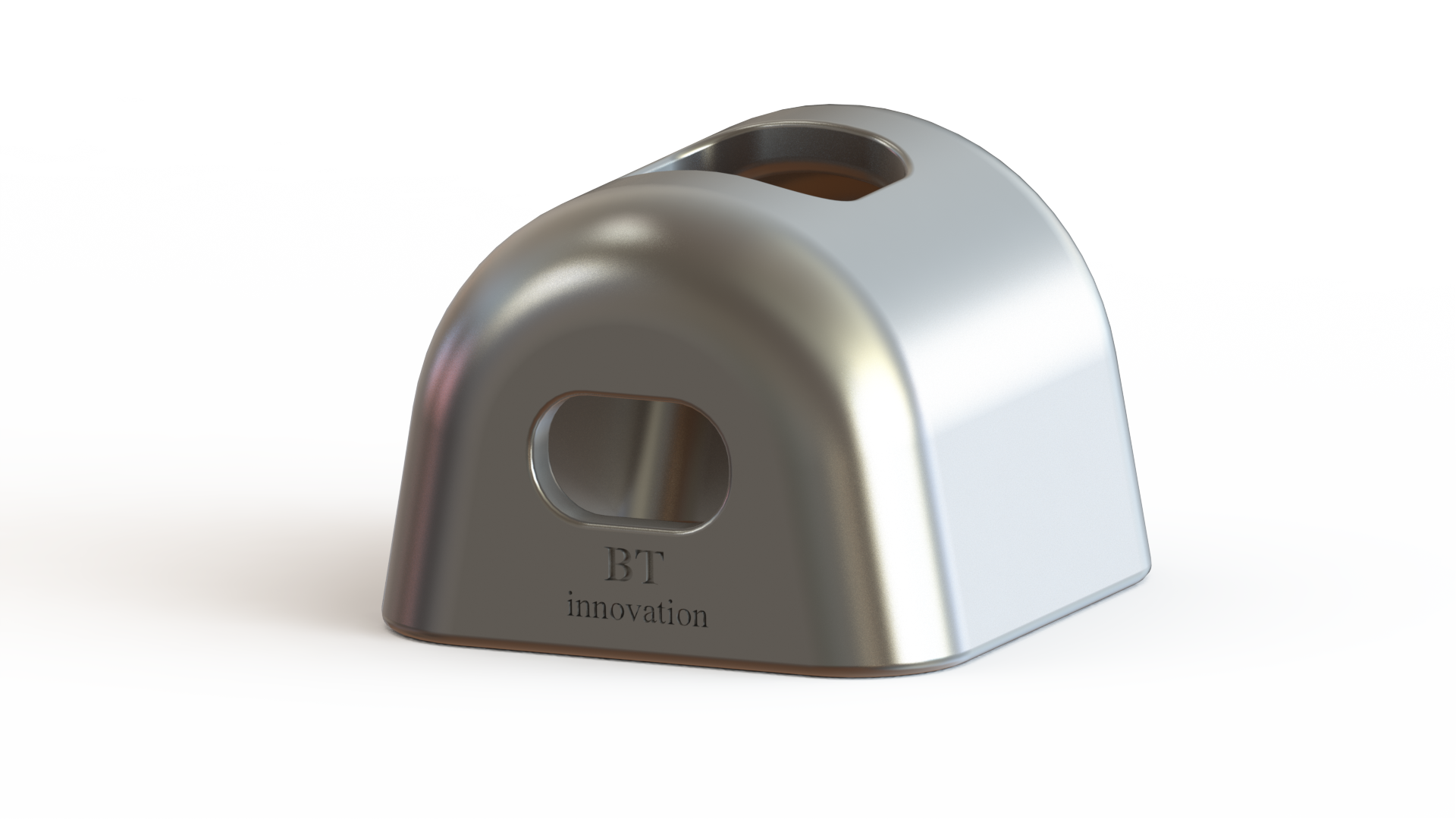

M16 TURNBUCKLE
BT Innovation
#4009076
The BT-Spannschloss means that prefabricated concrete parts can be connected without any additional materials or resources. Without any need to comply with cure times, the connection can immediately bear a full load and thus generates significant time and cost savings in comparison to other established systems.
- Quick, effective connection of construction elements
- Building elements can be clamped without additional materials or special resources
- Can be combined with all authorised anchorage systems
- Low net weight
- Resistant to tensile and shear forces
- Cost and time savings through reduction of assembly times and elimination of cure times
- No need for time-consuming individual solutions
- Can be assembled whatever the weather
- Precise positioning of the anchor in the manufacturing process via BT magnet technology
- Approval from the DiBt (German Institute for Building Technology) Berlin)
- Static verification of the chosen construction connection
- Weight: 1,00 kg
- a: 90 mm
- b: 90 mm
- c: 65 mm
- d: 30 mm
- e: 18 mm
- f: 45 mm
- g: 32 mm
- Certification
