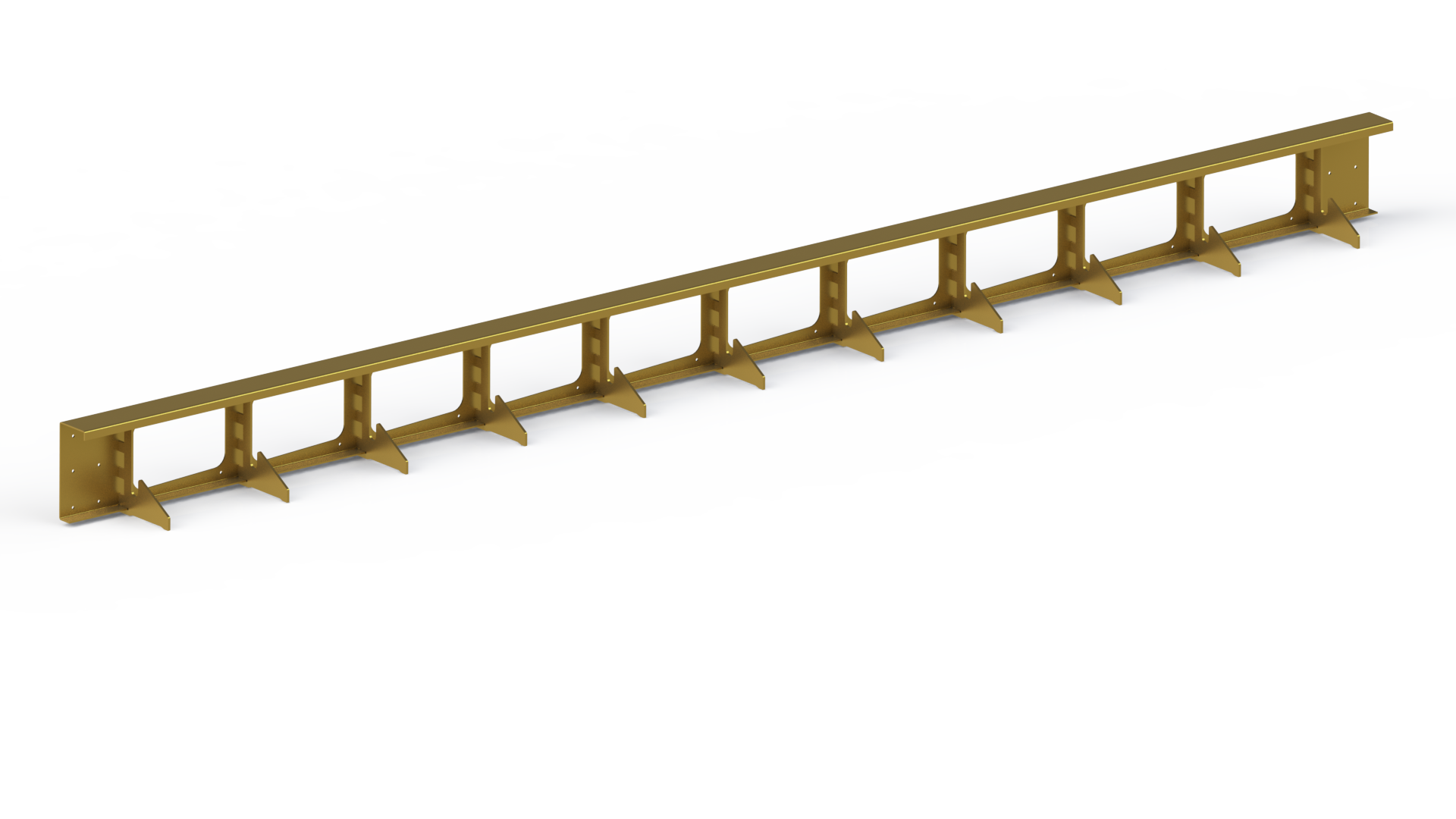

MultiForm Type 2 - 198/3025
BT Innovation
#8101096
With MultiForm you can simplify your shuttering construction. The front of the shuttering support can be covered with a facing in wood, chipboard, plastic or steel. This is screwed into place from the back. In this way the formwork facing remains undamaged and indentations in the concrete produced by screw heads are a thing of the past. And with facing concrete, this means that time-consuming filling and sanding is no longer necessary.
- Fast, simple and exact positioning by magnets with MagFly®-Technology
- High-quality, fully-galvanized support system for quick, easy and precise shuttering
- Recommended formwork heights from x+2 mm up to x+102 mm
- Reduction in working time and material when constructing new shuttering
- The light weight means ease of handling, in most cases entirely without a crane
- Magnets and shuttering supports are not
- Endless length by simple overlapping of ply wood
permanently connected together, which simplifies handling and allows for flexible use - With the corresponding accessories, MultiForm can be used on the widest variety of basic shuttering systems, e.g. on table forms and tilting tables, circulating pallets, stairway formwork, wooden surfaces and much more
- Easily cuttable
- Fast, simple and exact positioning by magnets with MagFly®-technology

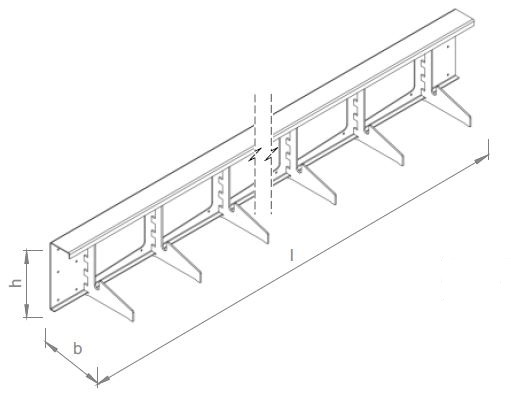

- Height (h): 198 mm
- Length (l): 3025 mm
- Witdh (b): 150 mm
- Weight: 19,50 kg
- Material: QST380
