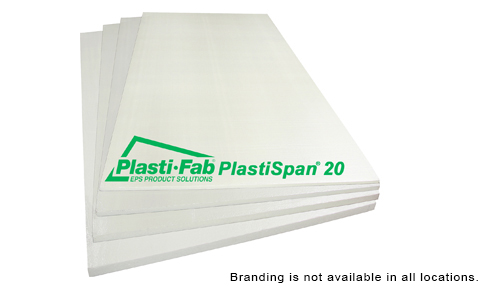

PLASTISPAN 20
Plasti-Fab
#1117000
PlastiSpan® 20 insulation is a closed cell expanded polystyrene (EPS) insulation that meets or exceeds the requirements of CAN/ULC-S701,
Standard for Thermal Insulation, Polystyrene, Boards and Pipe Covering.
The closed cell structure of PlastiSpan 20 insulation resists water absorption so it will retain its R-value even in applications where severe temperature differentials occur.
PlastiSpan 20 insulation’s minimum compressive resistance of 140 kPa (20 psi) makes it ideal to insulate low temperature freezer floors or for use in other applications where moderate loads are expected.
- Meets all building code requirements
- Meets CAN/ULC-S701, Type 2
- Thermal resistance - RSI 0.70/25 mm (R-value 4.04/inch)
- Closed cell insulation resists moisture
- CCMC 12425-L
Continuous insulation eliminates thermal bridging, increasing your total effective RSI/R-value. This reduces energy costs and increases
your energy savings.
CAN/ULC-S701-11, Standard for Thermal Insulation, Polystyrene, Boards and Pipe Covering is the National Standard of Canada for moulded expanded polystyrene (EPS) insulation.
The table below provides material properties for PlastiSpan insulation meeting CAN/ULC-S701, Type 2.
2x8 ft, 4x8 ft
2 ft high bundles
Thickness to meet job
PlastiSpan 20 insulation meets or exceeds the requirements of CAN/ULC-S701, Standard for Thermal Insulation, Polystyrene, Boards and Pipe Covering, the National Standard of Canada for expanded polystyrene (EPS) insulation.
| Material Property | Test Method | Units | Property Values |
| Compressive Resistance Minimum @ 10% Deformation |
ASTM D1621 |
kPa (psi) |
140 (20) |
| Compressive Modulus Minimum |
kPa (psi) |
5,000 (725) |
|
| Thermal Resistance Minimum per 25mm (1 inch) |
ASTM C518 |
m2 • 0C/W (ft2•h•0F/BTU) |
0.70 (4.04) |
| Flexural Strength Minimum |
ASTM C203 |
kPa (psi) |
280 (40) |
| Water Vapour Permeance Maximum |
ASTM E96 |
ng/(Pa.s.m)2 (Perms) |
200 (3.5) |
| Water Absorption Maximum |
ASTM D2842 |
% By Volume | 2.0 |
| Dimensional Stability Maximum, 7 Days @ 70± 2℃ (158 ± 4℉) |
ASTM D2126 |
% Linear Change | 1.5 |
| Limiting Oxygen Index Minimum |
ASTM D2863 |
% | 24 |
